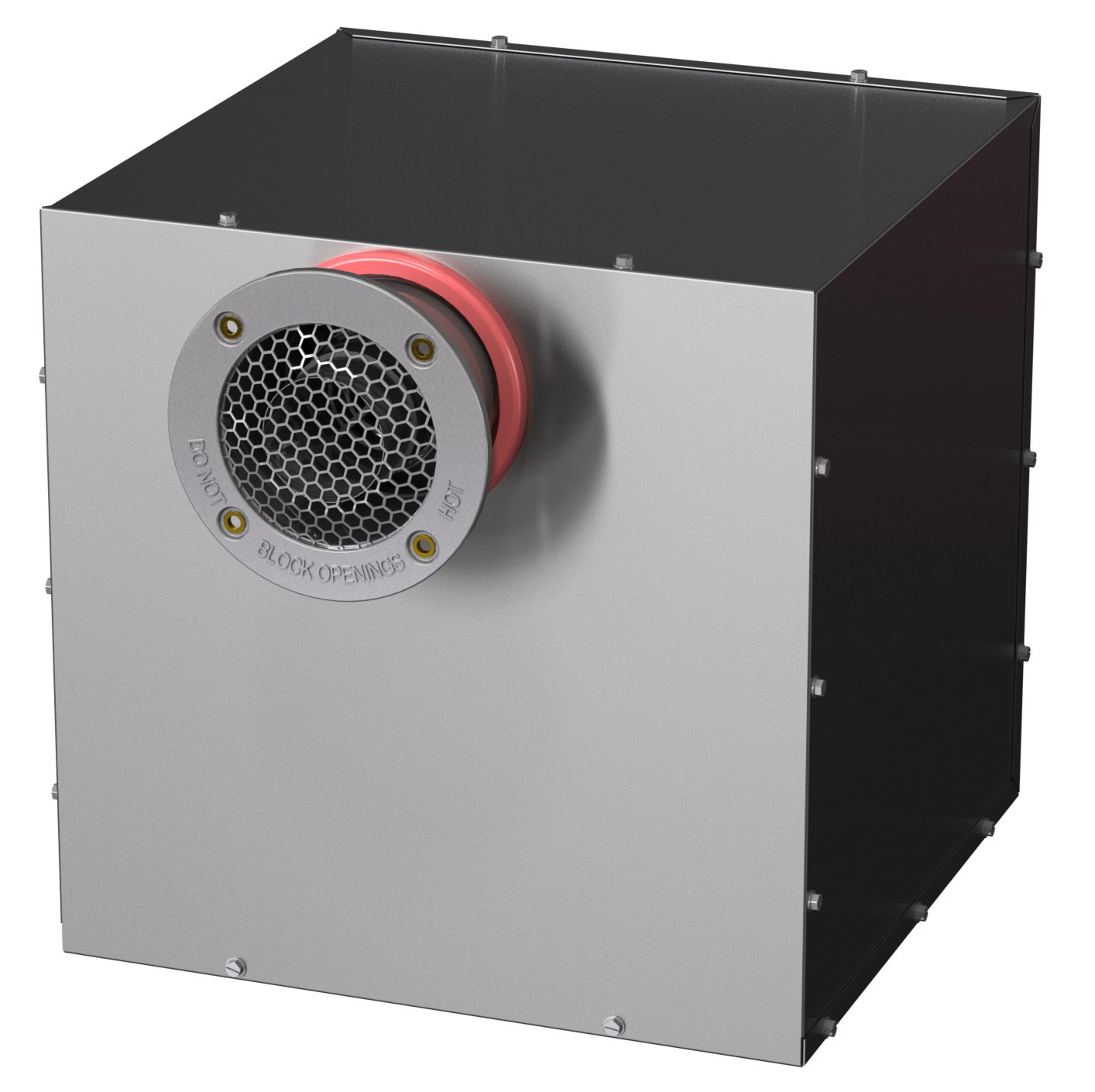

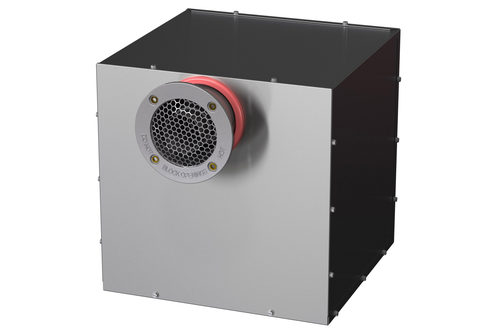

Edge Tankless On-Demand Water Heater
The Aqua-Hot Edge Tankless On Demand Water Heater provides an instant, endless supply of hot water at a controlled temperature as set by the RV owner.

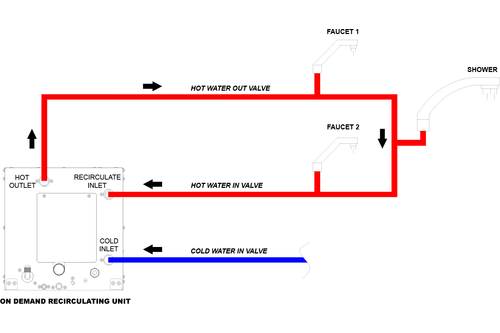

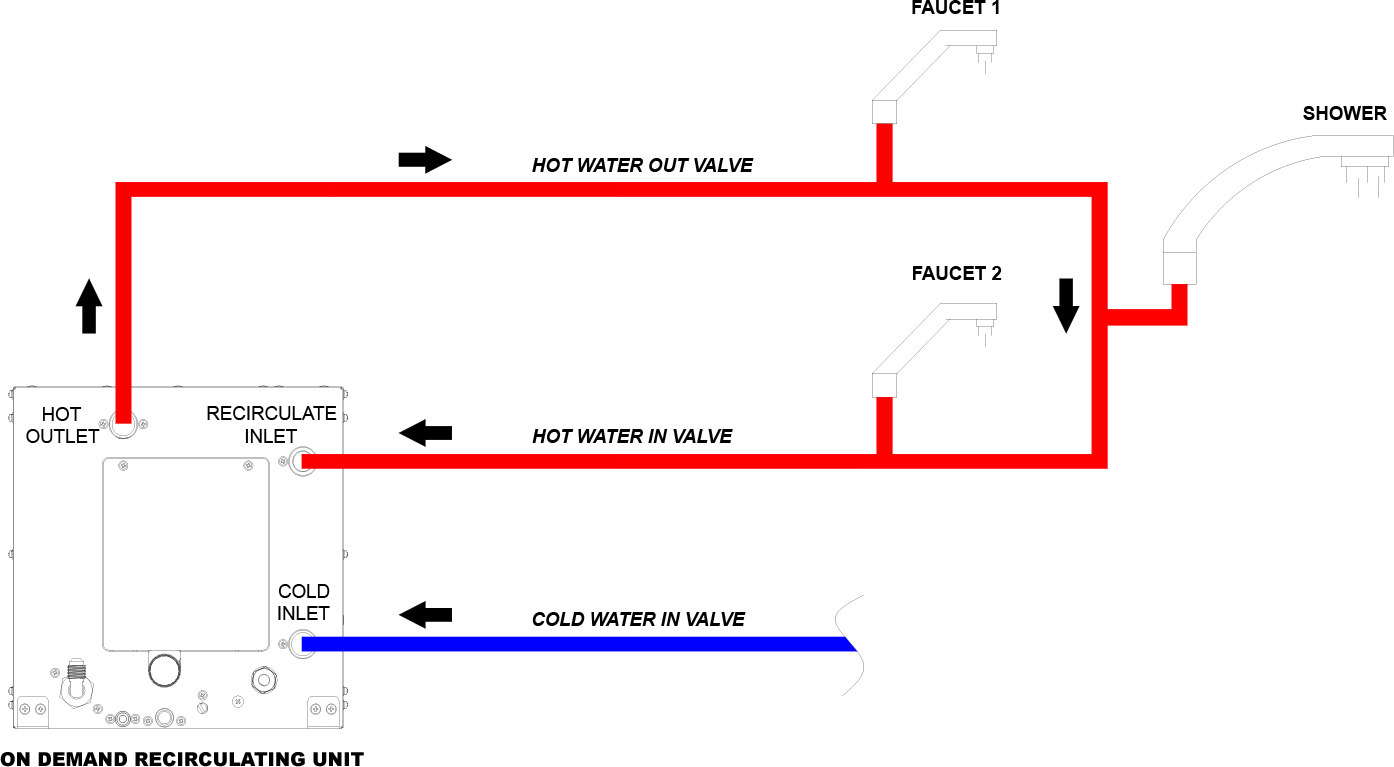

Equipped with a recirculating loop, the hot water stays at the ready, and creates a nearly “instant hot” environment. No more
wasting on-board water waiting for spigot water to come up to temperature.
The On-Demand feature saves energy by only engaging the burners when water is needed…be it for a hot shower, clean dishes
or for hosing off after a day at the beach.
Sized to fit into existing standard 6-gallon water heater side-wall cutouts, the unit comes ready for set-up with an included

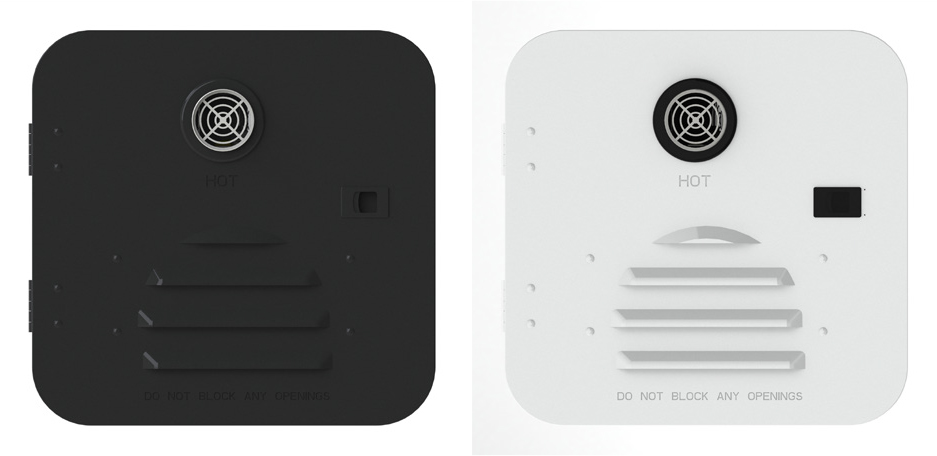

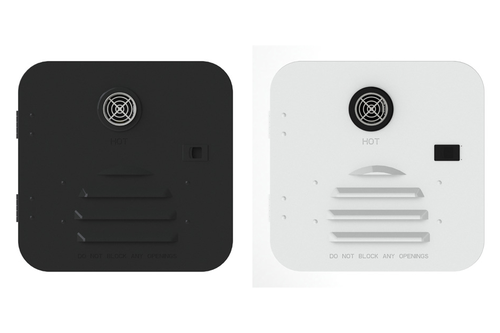

wall mount digital control center. Available in Doored or Door-Less models.
Designed With a Wide Array of Safety & Protection Features
- Ideal for any RV seeking to set itself apart with unlimited hot water. The high BTU output ensures water at a consistent output temperature, even in areas with low temperature water inlet sources.
- “Instant Hot” recirculating loop, keeps hot water at the ready, no more wasting on-board water waiting for spigot water to come up to temperature.
- The Water Heater Installs Inside the Coach, with only the vent cap showing through the exterior side-wall for a finished look. Available in Doored or
Door-Less models.
- Flame Out Protection is a safety feature that will cut gas supply immediately due to low propane pressure or burner malfunction.
- Scald Protection is managed through an internal high temperature kill switch to protect against a thermostat malfunction. A child lock prevents outlet
temperatures in excess of 113° F.
- Automatic Fan Monitoring cuts gas supply should the air flow or combustion air supply be interrupted.
- Active Freeze Protection from unexpected low temperatures when power and propane are available.
- Pressure Release Safety Valve
- Voltage Protection shuts down the unit if low/high or overcurrent voltage is detected.
- Worry-Free two-year limited warranty.
TECHNICAL SPECIFICATIONS |
Max. / Nominal Heat Input |
65,000 BTU |
Minimum Heat Input |
8,000 BTU |
Max. Inlet Gas Pressure |
3.49 kPa (14" wc) |
Min. Inlet Gas Pressure |
2.62 kPa (10.5" wc) |
Rated Gas Inlet Pressure |
2.74 kPa (11" wc) |
Electrical Supply |
12VDC |
Total Input Current |
<10A |
Ignition Method |
Automatic Ignition |
Min. Water Flow Rate |
0.4 GPM |
Gas Inlet Connection |
3/8" Male Flare |
Water Inlet/Outlet Connections |
1/2" Male NPT |

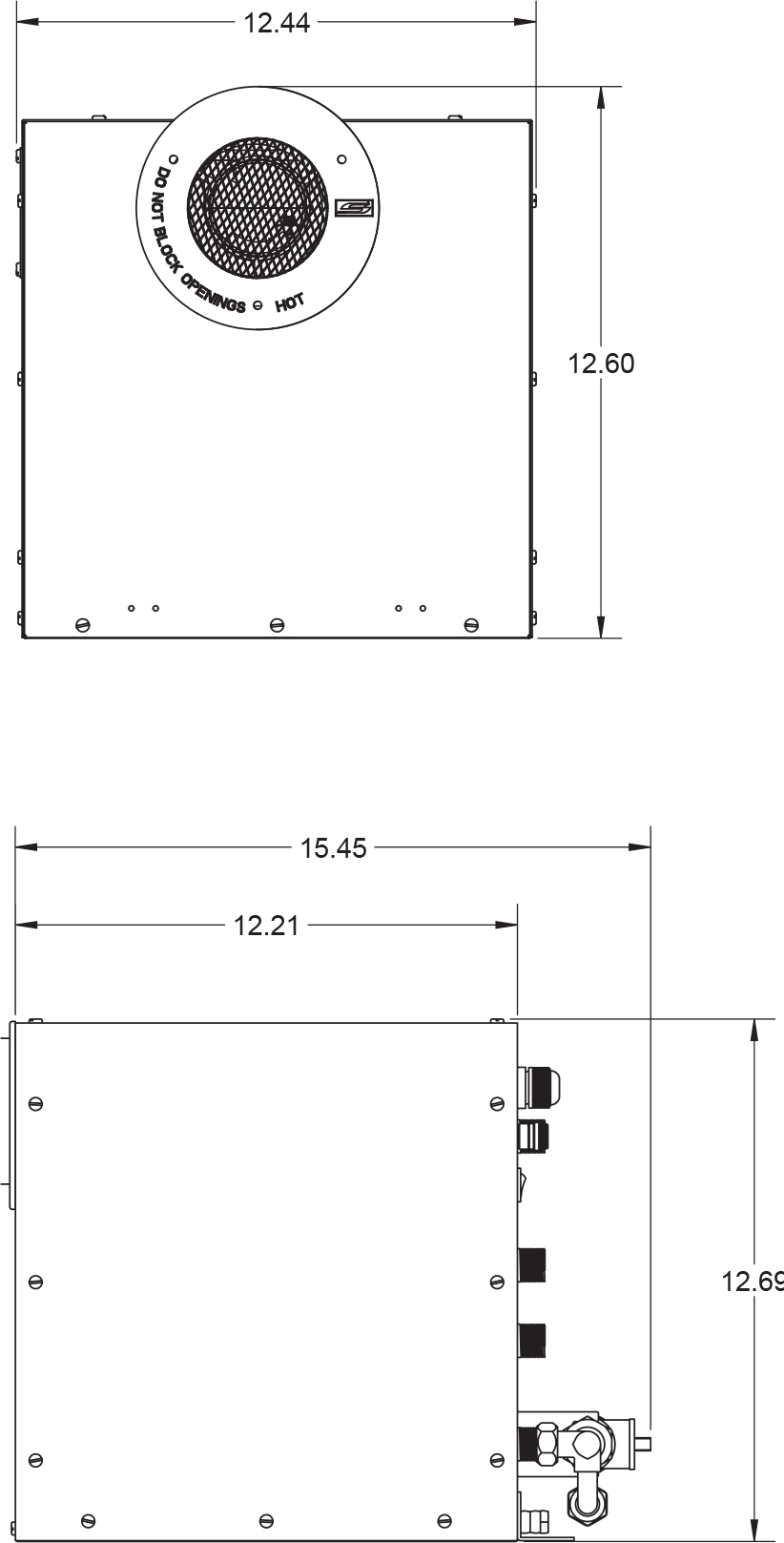

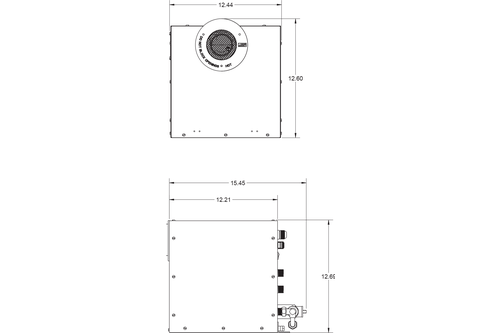

Dimensions (Casing, HxWxD) |
12-1/2" x 12-3/4" x 13" |
Max Outlet Temperature |
131°F (55°C) |
Weight (unit only) |
19.0 lbs. |
Digital Wall Controller |
Included |
Dimensions (Wall Controller, HxWxD) |
4.93" x 3.17" x 0.69" |
